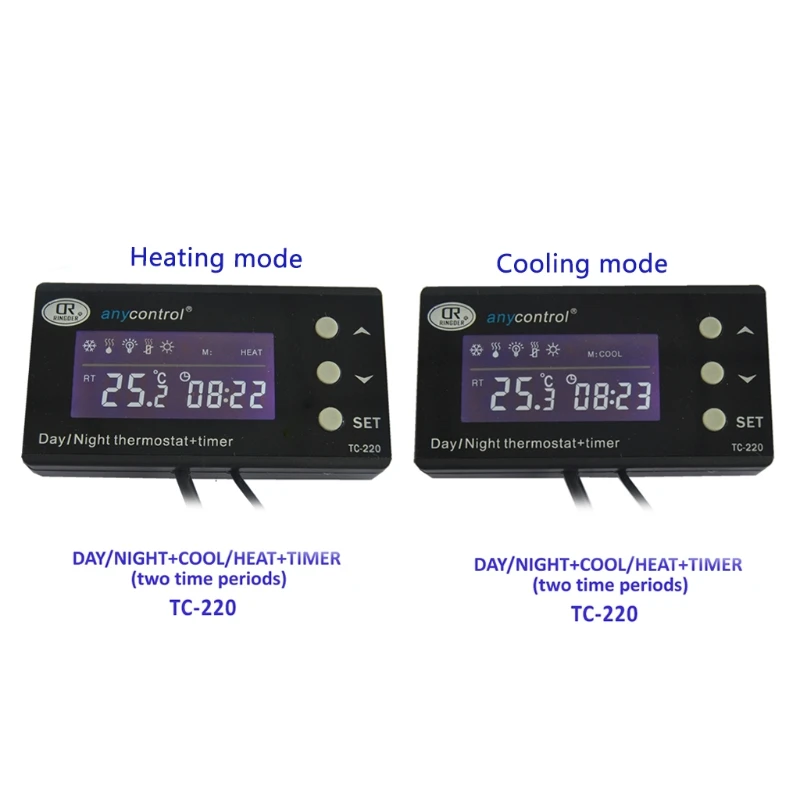

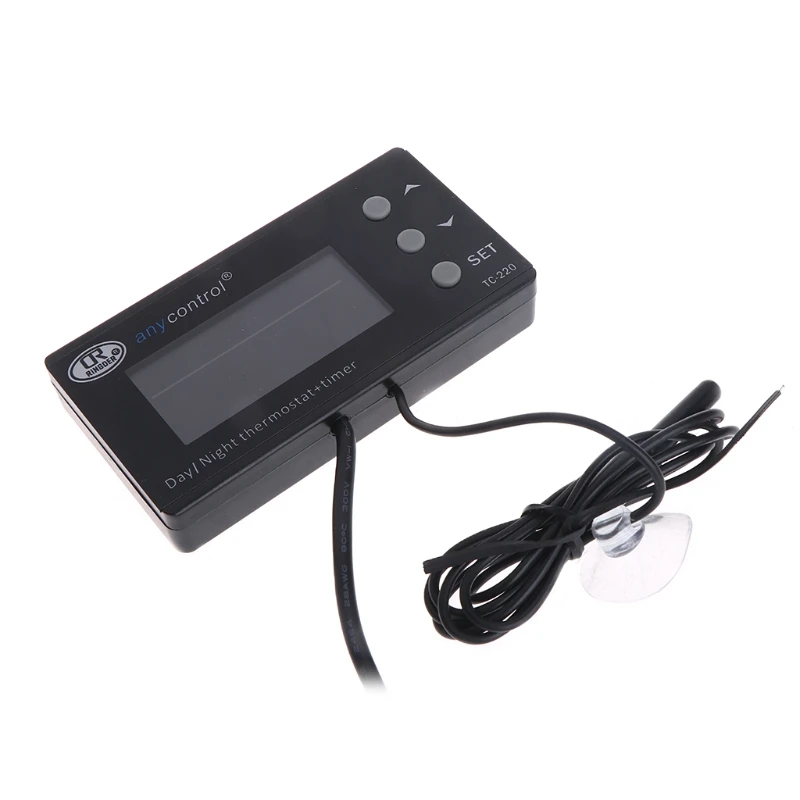

Timer Regulator

Model: TC-220

The color options meaning, for example “EU 220V 10A Relay”:

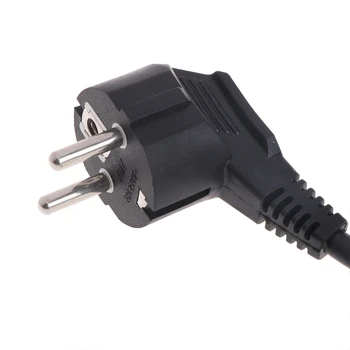

“EU” means the product comes with European plug and socket
“220V” means the power supply of the controller; In fact, it can fluctuate 220V±15%.
“10A relay” means Maximum Switching Current of the relay.
“US” means the product comes with United States plug and socket
​If you choose wrong option, you have to be at your own risk!!!

Features:
Blue tape LCD display, simple operation
Temperature adjusted per 0.1°C
Two timers can be set during 24 hours
Uses a inbuilt real-time clock to control the light so simulating the day and night as in the real environment
Can be set with a separate day and night time temperature
Three kinds of temperature alarms, mute function available
Can be used in both wet and dry environments
Backlight auto shut down if without operation for 10 minutes
Small in size making it stylish and discrete

Parameters:
Controlling range: 0.0~50.0°C
Measuring range: 0.0~50.0°C
Resolution: 0.1°C; Accuracy: ±1.0°C
Over heat alarm: 0.0-5.0°C(can be modified)
Time unit: hour (24:00 format)
Product consumption: ≤3

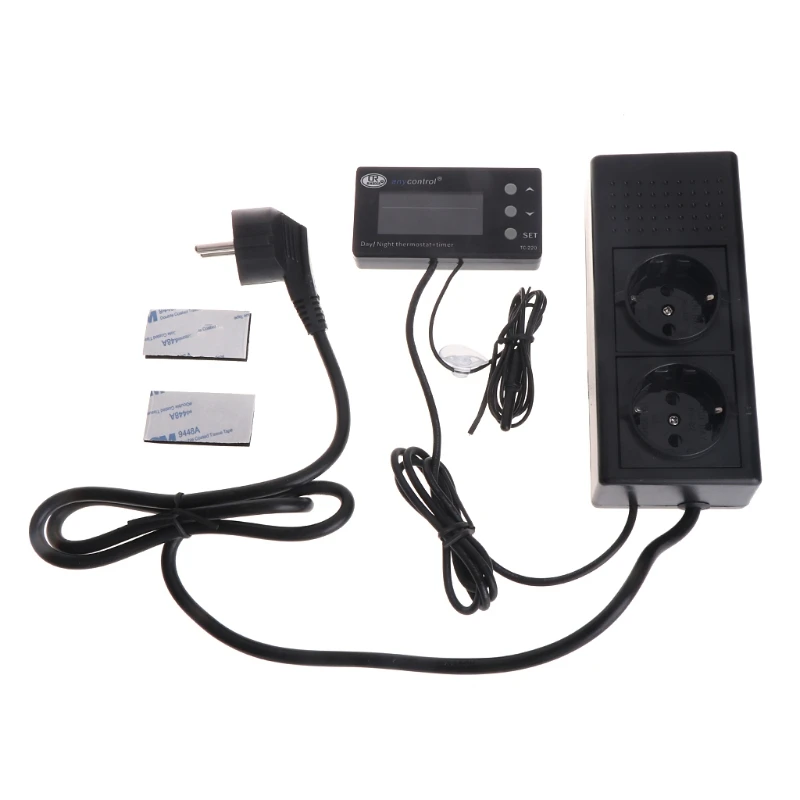

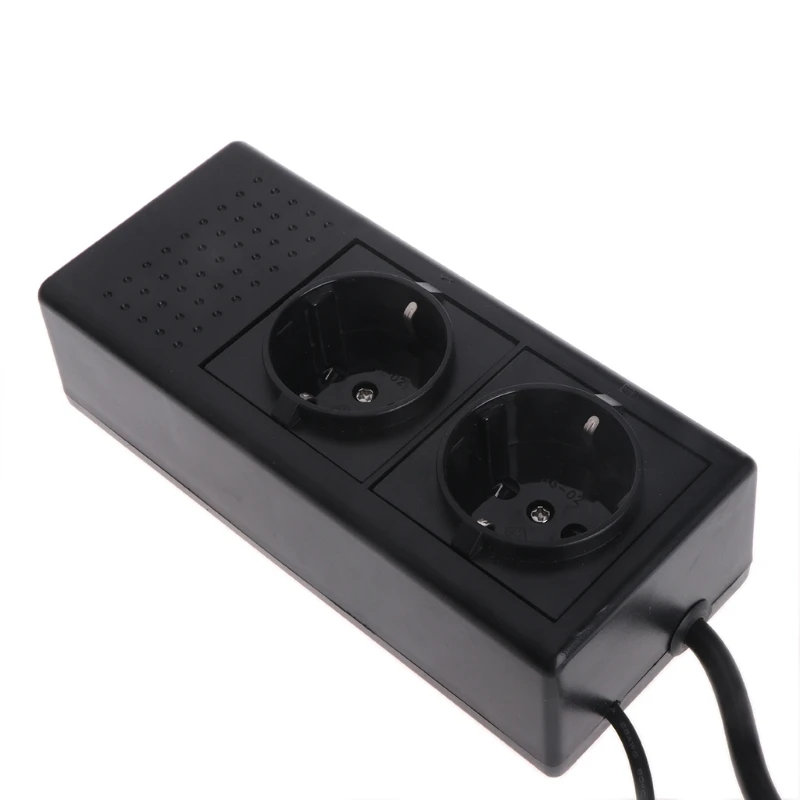

Two independent sockets –First socket I is for heat/cool output; Second socket II is for the timer output (for lighting for example).
The current of the load must be : inductive load or filament lamp≤10% of the current on the wiring diagram; resistive load≤50% of the current on the wiring diagram.wiring diagram is on the back of the product.
